The Automatic Identification System (AIS) is a data system that allows ships to communicate their position and obtain the position of other ships in order to avoid collisions. However, it should be noted that it is not always a reflection of reality, as military vessels are not obliged to indicate their location.

How does the AIS work?

This system works by means of VHF (radio) communication, radar, visual warnings, audible warnings and recently also satellite communication.

In addition to displaying the position of nearby vessels on one screen, you can also obtain additional information such as their speed, course or current navigation status, but only if the other vessels are also transmitting the information via AIS.

Vessels with this system transmit data via VHF marine band. Although only one radio channel is required, each station transmits and receives on two channels to avoid interference and not lose communication with other vessels as they move.

Communications are maintained with integrity even in overload situations thanks to a technology called SOTDMA, which provides autonomous operation of the network at sea, avoiding interference. To support this technology, the vessel’s hardware needs to meet minimum requirements, such as a transmitter, two VHF transmitters and a GPS receiver.

The GPS provides the vessel identification number to the AIS. This number consists of a unique MMSI identifier and, optionally, the IMO code. The MMSI code has 9 digits, three of which define the country vessel’s flag. All ships flying the Spanish flag start with the code 224 or 225.

As only vessels use AIS, the display can show ships, but cannot detect objects such as shorelines or buoys, for which radar is required. In addition, radar could detect a target even if it does not broadcast any signal, which, as we have just seen, is not the case with AIS.

The Automatic Identification System allows ships to communicate their position and obtain the position of other ships to avoid collisions.

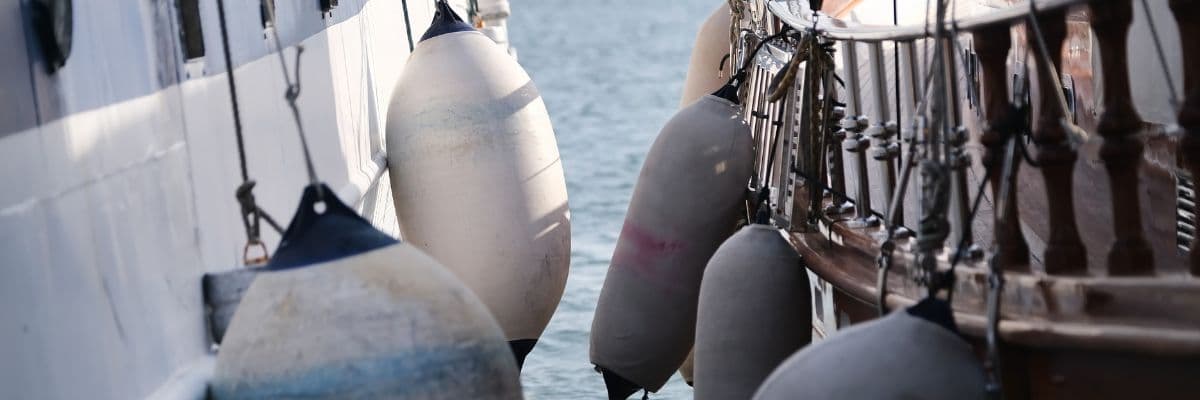

Types of boat fenders

There are countless types of fenders, ranging in price and performance. In fact, any piece of rubber or PVC suspended above the waterline can be considered a fender. The boat rests on these pieces and can maneuver without the risk of rubbing against the hull.

Suisca Group recommends the installation of approved fenders to prevent damage to vessels and dock infrastructure. These are the most commonly used.

Is AIS mandatory?

The IMO (International Maritime Organisation) established at the end of 2004 that they must be equipped with the AIS system (Directive 2002/59/E):

• Vessels of more than 300 gross tonnage or 500 GT.
• Vessels on international voyage with gross tonnage over 300 GT.
• All passenger vessels, regardless of their size.

GT (Gross Tonnage) is the measure of a ship’s capacity, and consists of the volume of all the interior spaces of the ship, including accommodation, cabins, etc.

It must be taken into account that a future European directive is in the process of being approved that will change the aforementioned directive. In this regard, the use of AIS will be mandatory for fishing vessels with the following implementation schedule:

• Fishing vessels between 24 and 45 metres in length: no later than 3 years after the entry into force of the Directive.
• Fishing vessels between 18 and 24 metres in length: no later than 4 years after the entry into force of the Directive.
• Fishing vessels between 15 and 18 metres in length: no later than 5 years after the entry into force of the Directive.
• Newly built fishing vessels over 15 metres in length: no later than 18 months after the entry into force of the Directive.

In addition, Commission Decision 2005/53/EC of 25 January 2005 invites smaller vessels, which are not subject to these regulations, to install AIS for safety reasons.

Types of AIS

Depending on the size and complexity of the ship, a Class A or Class B AIS is used.

Class A

It is used on offshore vessels. It has several transmitters and receivers and operates in the frequency range between 156.025 MHz and 162.025 MHz. It continuously sends information and has a transmitting power of 12.5 W. Its range can reach up to 50 miles. The Directorate General of Merchant Marine (DGMM) also stipulates that ships used for nautical training must have it. In addition, the ITU (International Telecommunication Union) advises that ships that are not obliged to install Class A should also have it.

Class B

It has lower performance and requires less technological knowledge to operate. It operates between 161.500 MHz and 162.025 MHz. It sends information every 3 minutes and its transmitting power is 2 W. Its range is approximately 12 miles.

The AIS automatic identification system has great advantages for the safety of maritime and inland waterway navigation.

Advantages of AIS

Although it cannot detect the coastline and other elements without an AIS transmitter, vessels use this system because:

• It has a long range.
• It allows to know not only the position, but also the speed of the vessel and its identification number.
• The information is more accurate than a radar, since the data is displayed on vector or electronic maps.
• In river navigation, vessels may be invisible to radar because of the river meander, but it is possible to track vessels with AIS.
• The AIS can calculate the Time to Closest Point of Approach (TCPA) without requiring any other system and can be programmed to issue an alarm in time to avoid it.
• Low energy consumption.
• Its price is low compared to other ship security systems.
• There are now chartplotters that allow both AIS and radar layers to be displayed on the same navigation screen.
• Information can be received on

  shore-based computers via the

  Internet.

As can be seen, the AIS automatic identification system has great advantages for the safety of maritime and inland waterway navigation. The problem that remains, is that since it is not compulsory for all ships, collisions can occur with ships that do not have the AIS navigation system. Suisca Group is committed to vessel safety and offers everything a vessel may need at its port of call. With this in mind, if a ship has technical problems with the AIS, we can offer supplies for these, 24 hours a day, seven days a week.
